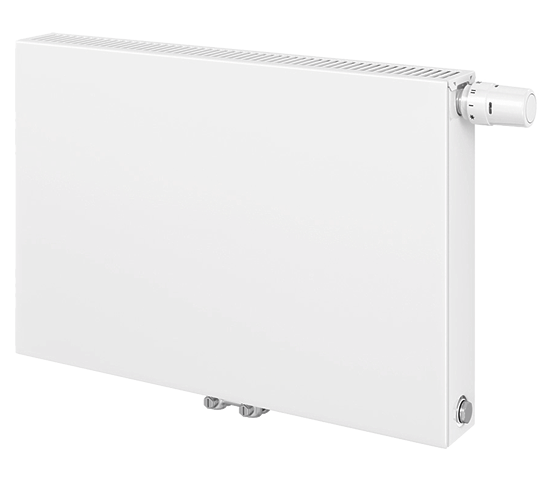

T6P21300120 - T6 Plan Centrally Connected Radiator Type 21 (HxW=300x1200, 940W)

Radiators - Panel - T6 Centrally Connected Plan Radiator » T6 Plan Centrally Connected Radiator Type 21

The T6 technology is based on the radiator’s axis of symmetry, thereby creating limitless flexibility.

T6 centre-connection radiators are perfectly symmetrical.

They are the ideal combination of design and unique technology.

Thanks to the patented technology and the special geometry of the convection plates, the T6 provides extremely high heating power.

Consequently, it is able to heat up rooms particularly rapidly and guarantees the optimum level of thermal comfort.

Documents

CAD
Vogel & Noot - T6-Plan Type 21 300x1200 - DWG CAD 11 Sep 2018
Marketing
KE KELIT Climate Control - Heating Systems Product Catalogue 26 Jun 2019
Vogel & Noot - Radiator & Towel Warmer Brochure 01 Mar 2018
Specifications
Vogel & Noot - T6-Plan Centrally Connected Radiators - Specification Text 07 Sep 2018
Technical
Vogel & Noot - Heat Output Calculator Software 11 Sep 2018
Vogel & Noot - Technical Information Heat Emission Systems 01 Mar 2018
Login or register to create projects and view pricing.

Product Data


Radiator Data
Code Description Height Width Heat Output (°C) Heat Output (Watts)
T6P21300100 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x1000, 783W) 300 mm 1000 mm 75/65/20 783 W
T6P21300040 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x0400, 313W) 300 mm 400 mm 75/65/20 313 W
T6P21300060 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x0600, 470W) 300 mm 600 mm 75/65/20 470 W
T6P21300080 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x0800, 626W) 300 mm 800 mm 75/65/20 626 W
T6P21300120 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x1200, 940W) 300 mm 1200 mm 75/65/20 940 W
T6P21300140 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x1400, 1096W) 300 mm 1400 mm 75/65/20 1096 W
T6P21300160 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x1600, 1253W) 300 mm 1600 mm 75/65/20 1253 W
T6P21300180 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x1800, 1409W) 300 mm 1800 mm 75/65/20 1409 W
T6P21300200 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x2000, 1566W) 300 mm 2000 mm 75/65/20 1566 W
T6P21300220 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x2200, 1723W) 300 mm 2200 mm 75/65/20 1723 W
T6P21300240 T6 Plan Centrally Connected Radiator Type 21 (HxW=300x2400, 1879W) 300 mm 2400 mm 75/65/20 1879 W
T6P21400040 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x0400, 395W) 400 mm 400 mm 75/65/20 395 W
T6P21400060 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x0600, 593W) 400 mm 600 mm 75/65/20 593 W
T6P21400080 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x0800, 790W) 400 mm 800 mm 75/65/20 790 W
T6P21400100 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x1000, 988W) 400 mm 1000 mm 75/65/20 988 W
T6P21400120 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x1200, 1186W) 400 mm 1200 mm 75/65/20 1186 W
T6P21400140 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x1400, 1383W) 400 mm 1400 mm 75/65/20 1383 W
T6P21400160 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x1600, 1581W) 400 mm 1600 mm 75/65/20 1581 W
T6P21400180 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x1800, 1778W) 400 mm 1800 mm 75/65/20 1778 W
T6P21400200 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x2000, 1976W) 400 mm 2000 mm 75/65/20 1976 W
T6P21400220 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x2200, 2174W) 400 mm 2200 mm 75/65/20 2174 W
T6P21400240 T6 Plan Centrally Connected Radiator Type 21 (HxW=400x2400, 2371W) 400 mm 2400 mm 75/65/20 2371 W
T6P21500040 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x0400, 469W) 500 mm 400 mm 75/65/20 469 W
T6P21500060 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x0600, 704W) 500 mm 600 mm 75/65/20 704 W
T6P21500080 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x0800, 938W) 500 mm 800 mm 75/65/20 938 W
T6P21500100 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x1000, 1173W) 500 mm 1000 mm 75/65/20 1173 W
T6P21500120 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x1200, 1408W) 500 mm 1200 mm 75/65/20 1408 W
T6P21500140 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x1400, 1642W) 500 mm 1400 mm 75/65/20 1642 W
T6P21500160 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x1600, 1877W) 500 mm 1600 mm 75/65/20 1877 W
T6P21500180 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x1800, 2111W) 500 mm 1800 mm 75/65/20 2111 W
T6P21500200 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x2000, 2346W) 500 mm 2000 mm 75/65/20 2346 W
T6P21500220 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x2200, 2581W) 500 mm 2200 mm 75/65/20 2581 W
T6P21500240 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x2400, 2815W) 500 mm 2400 mm 75/65/20 2815 W
T6P21500260 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x2600, 3050W) 500 mm 2600 mm 75/65/20 3050 W
T6P21500280 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x2800, 3284W) 500 mm 2800 mm 75/65/20 3284 W
T6P21500300 T6 Plan Centrally Connected Radiator Type 21 (HxW=500x3000, 3519W) 500 mm 3000 mm 75/65/20 3519 W
T6P21600040 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x0400, 520W) 600 mm 400 mm 75/65/20 520 W
T6P21600060 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x0600, 781W) 600 mm 600 mm 75/65/20 781 W
T6P21600080 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x0800, 1041W) 600 mm 800 mm 75/65/20 1041 W
T6P21600100 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x1000, 1301W) 600 mm 1000 mm 75/65/20 1301 W
T6P21600120 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x1200, 1561W) 600 mm 1200 mm 75/65/20 1561 W
T6P21600140 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x1400, 1821W) 600 mm 1400 mm 75/65/20 1821 W
T6P21600160 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x1600, 2082W) 600 mm 1600 mm 75/65/20 2082 W
T6P21600180 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x1800, 2342W) 600 mm 1800 mm 75/65/20 2342 W
T6P21600200 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x2000, 2602W) 600 mm 2000 mm 75/65/20 2602 W
T6P21600220 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x2200, 2862W) 600 mm 2200 mm 75/65/20 2862 W
T6P21600240 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x2400, 3122W) 600 mm 2400 mm 75/65/20 3122 W
T6P21600260 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x2600, 3383W) 600 mm 2600 mm 75/65/20 3383 W
T6P21600280 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x2800, 3643W) 600 mm 2800 mm 75/65/20 3643 W
T6P21600300 T6 Plan Centrally Connected Radiator Type 21 (HxW=600x3000, 3903W) 600 mm 3000 mm 75/65/20 3903 W
T6P21900040 T6 Plan Centrally Connected Radiator Type 21 (HxW=900x0400, 708W) 900 mm 400 mm 75/65/20 708 W
T6P21900060 T6 Plan Centrally Connected Radiator Type 21 (HxW=900x0600, 1061W) 900 mm 600 mm 75/65/20 1061 W
T6P21900080 T6 Plan Centrally Connected Radiator Type 21 (HxW=900x0800, 1415W) 900 mm 800 mm 75/65/20 1415 W
T6P21900100 T6 Plan Centrally Connected Radiator Type 21 (HxW=900x1000, 1769W) 900 mm 1000 mm 75/65/20 1769 W
T6P21900120 T6 Plan Centrally Connected Radiator Type 21 (HxW=900x1200, 2123W) 900 mm 1200 mm 75/65/20 2123 W
T6P21900140 T6 Plan Centrally Connected Radiator Type 21 (HxW=900x1400, 2477W) 900 mm 1400 mm 75/65/20 2477 W
T6P21900160 T6 Plan Centrally Connected Radiator Type 21 (HxW=900x1600, 2830W) 900 mm 1600 mm 75/65/20 2830 W
T6P21900180 T6 Plan Centrally Connected Radiator Type 21 (HxW=900x1800, 3184W) 900 mm 1800 mm 75/65/20 3184 W
T6P21900200 T6 Plan Centrally Connected Radiator Type 21 (HxW=900x2000, 3538W) 900 mm 2000 mm 75/65/20 3538 W
