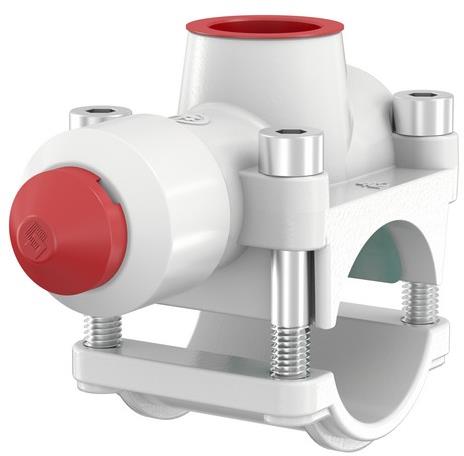

90522 - FLAMCO T-Plus Brass DN 22 x 1/2"
Branching Equipment - Branching Equipment »
FLAMCO - T-Plus Brass
The T-plus is specially designed to create perfect branches quickly and easily, whilst the system remains in operation.
The new branching mechanism (the trigger) means perfect installation everywhere, every time.
Once the pin is removed, the charge ignites and the striking pin shoots straight forward. This makes a clean cut in the pipe creating the branch and makes it possible to make branches even where there is little available space.
For use with EN 1057 copper tube and Stainless Steel piping to EN 10312 (excluding 42mm)
- Max Working Pressure: 16 bar
- Max Permissible Temperature: 120°C
Product Data
| 90528 |
FLAMCO T-Plus Brass DN 28 x 3/4" |
28 mm
|
3/4"
|
1.50
|
1.25
|
1.50
|
10 Nm
|
| 90515 |
FLAMCO T-Plus Brass DN 15 x 1/2" |
15 mm
|
1/2"
|
1.25
|
1.00
|
1.25
|
6 Nm
|
| 90518 |
FLAMCO T-Plus Brass DN 18 x 1/2" |
18 mm
|
1/2"
|
1.25
|
1.00
|
1.25
|
6 Nm
|
| 90522 |
FLAMCO T-Plus Brass DN 22 x 1/2" |
22 mm
|
1/2"
|
1.25
|
1.25
|
1.50
|
6 Nm
|
| 90535 |
FLAMCO T-Plus Brass DN 35 x 3/4" |
35 mm
|
3/4"
|
1.50
|
1.50
|
1.50
|
10 Nm
|
| 90542 |
FLAMCO T-Plus Brass DN 42 x 3/4" |
42 mm
|
3/4"
|
1.50
|
Not Suitable
|
1.50
|
10 Nm
|
