7020500 - KM110 KELOX Multilayer Pipe - 50 x 4.5mm (5m)
Piping Systems - KELOX Multilayer - KELOX Multilayer »

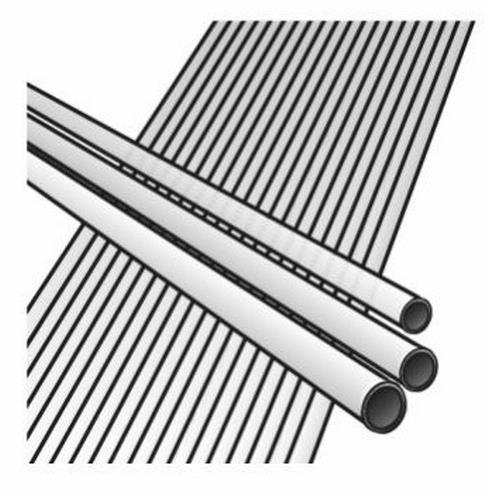

KM110 KELOX Multilayer Pipe - Straights
KELOX multilayer pipe conforming to EN ISO 21003. Pipe consists of oxygen and water vapour barriers made from a 5-layer multilayer tube of PE-RT/Al/PE-RT.
Operating Conditions Domestic Water: - Tmax - 70°C (Short term 80°C)
- Pmax - 10 bar
Operating Conditions Radiator Systems:
- Tmax - 80°C (Short term 90°C)
- Pmax - 10 bar
Supplied in straight lengths, external layer white.
Product Data
| 7020500 |
KM110 KELOX Multilayer Pipe - 50 x 4.5mm (5m) |
50 mm
|
41 mm
|
4.5 mm
|
| 7020160 |
KM110 KELOX Multilayer Pipe - 16 x 2mm (5m) (Alt Code: 7410160) |
16 mm
|
12 mm
|
2 mm
|
| 7020200 |
KM110 KELOX Multilayer Pipe - 20 x 2.25mm (5m) (Alt Code: 7527200) |
20 mm
|
15.5 mm
|
2.3 mm
|
| 7020250 |
KM110 KELOX Multilayer Pipe - 25 x 2.5mm (5m) (Alt Code: 7410250) |
25 mm
|
20 mm
|
2.5 mm
|
| 7020320 |
KM110 KELOX Multilayer Pipe - 32 x 3mm (5m) (Alt Code: 7410320) |
32 mm
|
26 mm
|
3 mm
|
| 7020400 |
KM110 KELOX Multilayer Pipe - 40 x 4mm (5m) |
40 mm
|
32 mm
|
4 mm
|
| 7020630 |
KM110 KELOX Multilayer Pipe - 63 x 6mm (5m) (Alt Code: 7410630) |
63 mm
|
51 mm
|
6 mm
|
| 7020750 |
KM110 KELOX Multilayer Pipe - 75 x 7.5mm (5m) (Alt Code: 7410750) |
75 mm
|
60 mm
|
7.5 mm
|
