7020320 - KM110 KELOX Multilayer Pipe - 32 x 3mm (5m) (Alt Code: 7410320)

Piping Systems - KELOX Multilayer - KELOX Multilayer » KM110 KELOX Multilayer Pipe - Straights

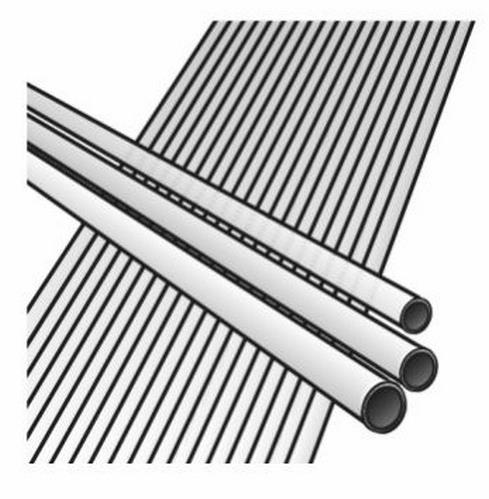

KELOX multilayer pipe conforming to EN ISO 21003. Pipe consists of oxygen and water vapour barriers made from a 5-layer multilayer tube of PE-RT/Al/PE-RT.

Operating Conditions Domestic Water:

Tmax - 70°C (Short term 80°C)
Pmax - 10 bar

Operating Conditions Radiator Systems:

Tmax - 80°C (Short term 90°C)
Pmax - 10 bar

Supplied in straight lengths, external layer white.

Documents

Certification
KE KELIT - KELOX Multilayer - CodeMark Certificate CM70042	25 Nov 2019
Marketing
KE KELIT - Piping Product Selector	30 Jul 2018
Technical
KE KELIT - KELOX Multilayer Handbook	29 Nov 2017

Product Data

		Measurements
Code	Description	External Diameter	Internal Diameter	Wall Thickness
7020500	KM110 KELOX Multilayer Pipe - 50 x 4.5mm (5m)	50 mm	41 mm	4.5 mm
7020160	KM110 KELOX Multilayer Pipe - 16 x 2mm (5m) (Alt Code: 7410160)	16 mm	12 mm	2 mm
7020200	KM110 KELOX Multilayer Pipe - 20 x 2.25mm (5m) (Alt Code: 7527200)	20 mm	15.5 mm	2.3 mm
7020250	KM110 KELOX Multilayer Pipe - 25 x 2.5mm (5m) (Alt Code: 7410250)	25 mm	20 mm	2.5 mm
7020320	KM110 KELOX Multilayer Pipe - 32 x 3mm (5m) (Alt Code: 7410320)	32 mm	26 mm	3 mm
7020400	KM110 KELOX Multilayer Pipe - 40 x 4mm (5m)	40 mm	32 mm	4 mm
7020630	KM110 KELOX Multilayer Pipe - 63 x 6mm (5m) (Alt Code: 7410630)	63 mm	51 mm	6 mm
7020750	KM110 KELOX Multilayer Pipe - 75 x 7.5mm (5m) (Alt Code: 7410750)	75 mm	60 mm	7.5 mm
