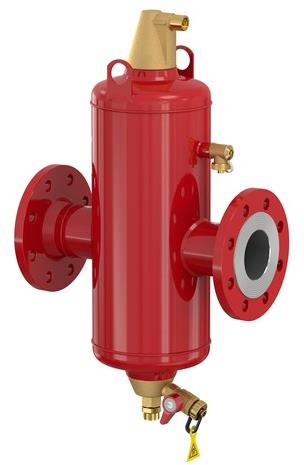

31049 - FLAMCO Flamcovent Clean Smart Air & Dirt Separator 250 F (10.0 bar)

Air/Dirt Separators & Dosing - Air & Dirt Separators - Air & Dirt Separators DN50 - 600 » FLAMCO - Flamcovent Clean Smart Flanged Air & Dirt Separator

Optimum air and dirt separation combined with energy retention.

The new Flamcovent Clean Smart air and dirt separators remove even the tiniest microbubbles and minuscule dirt particles from the system water.

The Flamcovent Clean Smart performs 60% better than conventional air and dirt separators, while the flow resistance has been reduced to a negligible level.

Maximum working pressure: 10 bar.
Suitable for systems with a maximum flow temperature of 120 °C.
Suitable for glycol solutions of up to 50%.
Standard flow speed up to 3 m/s.
Extremely low flow resistance resulting in less energy consumption.

Documents

CAD
Flamco - Flamcovent Clean Smart F - DWG CAD	10 Sep 2018
Installation
Flamco - Flamcovent Clean Smart - Installation Instructions	05 Sep 2018
Marketing
Flamco - Flamcovent Clean Smart F (Sizes DN 50-600) - Brochure	05 Sep 2018
Flamco - Product Overview	29 Aug 2018
KE KELIT Climate Control - Heating Systems Product Catalogue	26 Jun 2019
Packaging Data - Flamco, Simplex Meibes	14 Apr 2023
Specifications
Flamco - Flamcovent Clean Smart F - Specification Text	10 Sep 2018
Technical
Flamco - Flamcovent Clean Smart F - Data Sheet	05 Sep 2018
Flamco - Venting Range & Air/Dirt Separators - Catalogue	04 Sep 2018

Product Data

		Air & Dirt Separator Data
Code	Description	Capacity	Connection (DN)	Connection (mm)	Kv (m3/h)	Weight
31054	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 600 F (10.0 bar)	3056	600 DN	610.0	11939	1075
31041	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 50 F (10.0bar)	8	50 DN	60.3	93	16
31042	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 65 F (10.0 bar)	10	65 DN	76.1	140	17
31043	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 65 F (10.0 bar), 4 Hole	10	65 DN	76.1	140	17
31044	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 80 F (10.0 bar)	33	80 DN	88.9	209	28
31045	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 100 F (10.0 bar)	33	100 DN	114.3	311	32
31046	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 125 F (10.0 bar)	78	125 DN	139.7	459	55
31047	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 150 F (10.0 bar)	78	150 DN	168.3	675	63
31048	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 200 F (10.0 bar)	158	200 DN	219.1	1340	86
31049	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 250 F (10.0 bar)	370	250 DN	273.1	1952	165
31050	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 300 F (10.0 bar)	415	300 DN	323.9	2830	200
31051	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 350 F (10.0 bar)	840	350 DN	355.6	4084	350
31052	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 400 F (10.0 bar)	927	400 DN	406.4	5866	385
31053	FLAMCO Flamcovent Clean Smart Air & Dirt Separator 500 F (10.0 bar)	1768	500 DN	508.0	8387	745
