26103.2 - MEIBES PG Kombimix 2DC, Yonos PARA RS, ISO
Pump Groups - Residential - Pumps - Kombimix »

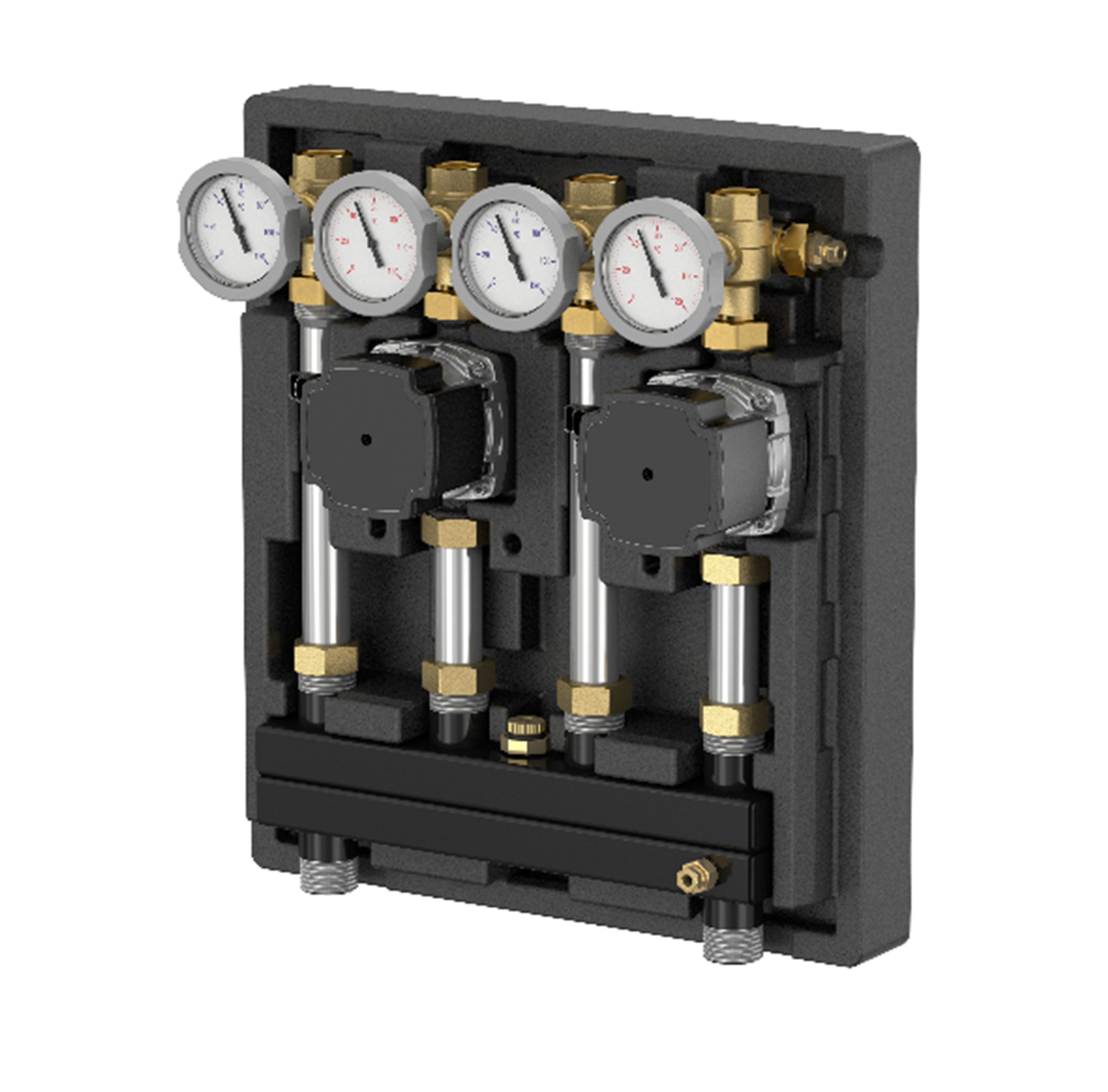

MEIBES PG - Kombimix
Thermally insulated, compact pump groups for two different or identical heating circuits (UK / MK).
With common manifold, connection options for temperature sensors, backflow preventer in respective supply line, contact thermometer in thegrip element in supply and return line, third heating circuit e.g. for tank charging in option accessory, e.g. for domestic water heating.
DN 20 Output per heating circuit (MC / RC) up to 24 kW (10 K) / up to 51 KW (20 K)
To heating circuits Connections 3 / 4" female thread; axial distance 90 mm To boiler Connections 1" male thread; axial distance 270 mmDimensions of EPP insulation (H × W × D) 460 × 410 × 260 mm Pump 130 mm installed length, Operating temperature Up to 80°C, Operating pressure PN 6
Product Data
| 26103.2 |
MEIBES PG Kombimix 2DC, Yonos PARA RS, ISO |
130 mm
|
110 °C
|
PN 6
|
24 kW
|
77 kW
|
5.1
|
1" M
|
3/4" F
|
2.20
|
2.10
|
| 26102.3 |
MEIBES PG Kombimix MC/DC, Grundfos UPM3 HYBRID 15-70, ISO |
130 mm
|
110 °C
|
PN 6
|
24 kW
|
77 kW
|
5.1
|
1" M
|
3/4" F
|
2.20
|
2.10
|
| 26101.3 |
MEIBES PG Kombimix 2MC, Grundfos UPM3 HYBRID 15-70 |
130 mm
|
110 °C
|
PN 6
|
24 kW
|
37 kW
|
2.9
|
1" M
|
3/4" F
|
2.10
|
2.10
|
| 26103.3 |
MEIBES PG Kombimix 2DC, Grundfos UPM3 HYBRID 15-70, ISO |
130 mm
|
110 °C
|
PN 6
|
51 kW
|
77 kW
|
5.1
|
1" M
|
3/4" F
|
2.20
|
2.20
|
| 66356.85 |
MEIBES PG Kombimix Tank Charging Kit 1" with UPM3 Hybrid 15-70 |
130 mm
|
110 °C
|
PN 6
|
23 kW
|
45 kW
|
5.1
|
1" M
|
3/4" F
|
2.6
|
2.6
|
| 26101.2 |
MEIBES PG Kombimix 2MC, Yonos PARA RS, ISO |
130 mm
|
110 °C
|
PN 6
|
24 kW
|
77 kW
|
5.1
|
1" M
|
3/4" F
|
2.20
|
2.10
|
| 26102.2 |
MEIBES PG Kombimix MC/DC, Yonos PARA RS, ISO |
130 mm
|
110 °C
|
PN 6
|
24 kW
|
77 kW
|
5.1
|
1" M
|
3/4" F
|
2.20
|
2.10
|
