17462 - FLAMCO Flexfiller Midi 225D
Expansion Vessels & Pressurisation Equipment - Pressurisation Equipment - Pressurisation Equipment »

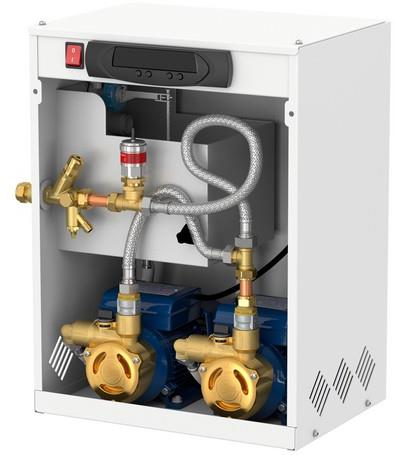

FLAMCO - Flexfiller Midi
Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.
Available in single or twin pump configuration.
The Midi is a deep wall mounted, 12 l/min flow rate top-up pressurisation unit with 4-litre break tank.
Application:
- Commercial.
- Industrial.
- Residential.
Operating Conditions:
- Maximum system temperature: 85 ºC.
- Maximum ambient temperature: 40 ºC.
- Relative humidity 95% non-condensing.
- Noise Rating Data: < 75 dBA.
Product Data
| 17462 |
FLAMCO Flexfiller Midi 225D |
2
|
2.5
|
22 mm
|
2 x 0.37
|
2 x 2.6
|
25.5
|
| 17461 |
FLAMCO Flexfiller Midi 150D |
1
|
5
|
22 mm
|
0.5
|
3.4
|
32.5
|
| 17463 |
FLAMCO Flexfiller Midi 250D |
2
|
5
|
22 mm
|
2 x 0.5
|
2 x 3.4
|
42
|
| 17460 |
FLAMCO Flexfiller Midi 125D |
1
|
2.5
|
22 mm
|
0.37
|
2.6
|
17
|
