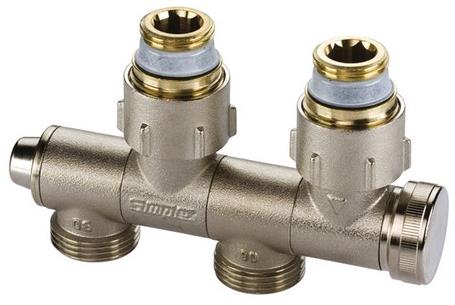

F10026 - SIMPLEX - VARIOCON H-Module U1, 3/4" Female Thread x 3/4" Male Thread, Straight & Angle, Swivelling, with Nipple & Drain - One Pipe System

Radiators - Accessories - Connection Valves » SIMPLEX - One-Pipe System Valve Block (Bypass Valve)

Connection valve with backflow retardant, radiator supply ratio 30-100 % (factory set to 35 %), with ball shut-off, control head with a concealed stop, for connection with compression adapters, 50 mm axial distance.Valve can also be used in two-pipe operation.

To this the throttle spindle must be turned to right until it is fully closed.

This completely shuts off the bypass.Body: Nickel-plated brassSeal: EPDMMax. operating pressure: 10 barMax. operating temperature: 110 °C permanent temperature, 130 °C short-term

Documents

Marketing
Packaging Data - Flamco, Simplex Meibes 14 Apr 2023
Simplex - Connection Valves - Brochure 01 Mar 2018
Technical
Simplex - EXCLUSIV H-Module - Data Sheet 01 Aug 2019
Simplex - VARIOCON U Connection Valve - Data Sheet 01 Aug 2019
