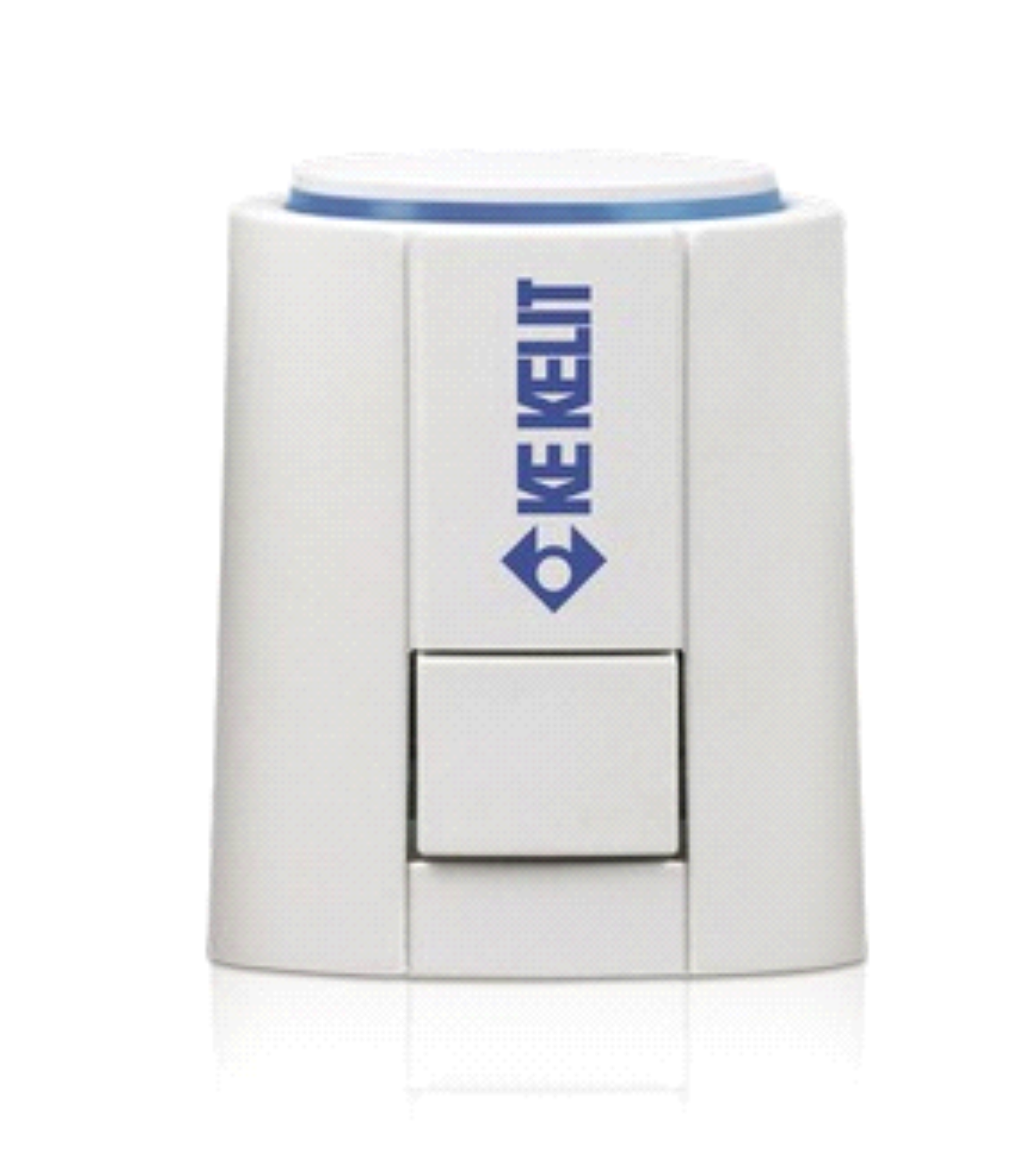

9005025 - KM596 KELOX FB Actuator 230 Volt Currentless Normally Open

Underfloor Heating - Manifolds - Manifold - Accessories » KM596 KELOX Thermal Motor

For attachment to KM590E, KMU590E, KU590 and KC 590 with an adaptor for thread M30 x1.5mm incl.

“First option function”, half opened in new condition 230V-AC: Start-up current 550mA/1W, 24V–AC/DC: Start-up current 300 mA/1W, IP Code/class IP 54, Travel: 4.0/5.0mm, Standard: “currentless closed”

Currentless open on request!

For attachment to KM590E, KMU590E, KU590 and KC 590 with adapter for thread M30 x1.5mm incl. “first option function”, half opened in new condition 230V-AC: Start-up current 550mA/1W, 24V - AC/DC: Start-up current 300 mA/1W, IP Code/class IP 54, Travel: 4.0/5.0mm, Standard: “current-less closed” Current-less open on request (KM690U thermostat only)

Documents

Marketing
KE KELIT - Piping Product Selector	30 Jul 2018
Technical
KE KELIT - Thermal Motor KM596 230V - Data Sheet	18 Oct 2022
KE KELIT - Underfloor Heating Technical Handbook - Aug 2022	31 Aug 2018
