9000700 - KM570 KELOX Universal Manifold Housing Frame 9-12 L:840mm

Underfloor Heating - Manifolds - Manifold Housing » KM570 KELOX Universal Manifold Housing Frame

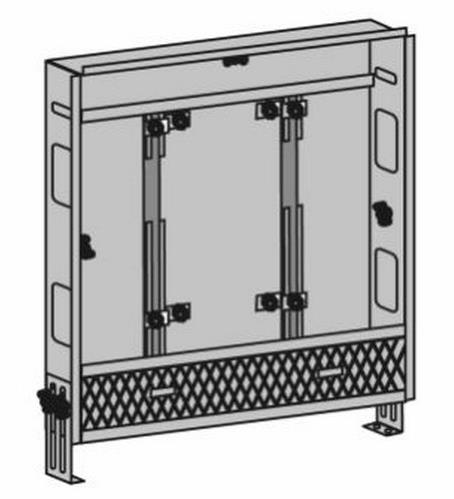

Sendzimir zinc-coated universal sheet steel cabinet, connection option from below or on the side, height-adjustable feet, plaster trim element below the cabinet, (width 120mm), upgradable with a surface-mounted or flush-mounted visible part.

A number of manifold outputs on KM590E KELOX FB manifold coordinated!

Cabinet depth: 75mm

Documents

Marketing
KE KELIT - Piping Product Selector 30 Jul 2018
Technical
KE KELIT - KM570+571+572 - Technical Data Sheet 18 Oct 2022
KE KELIT - Underfloor Heating Technical Handbook - Aug 2022 31 Aug 2018
Login or register to create projects and view pricing.

Product Data


Manifold Data
Code Description Ports Length
9000700 KM570 KELOX Universal Manifold Housing Frame 9-12 L:840mm 9-12 840 mm
9000500 KM570 KELOX Universal Manifold Housing Frame 1-4 L:460mm 1-4 460 mm
9000600 KM570 KELOX Universal Manifold Housing Frame 5-8 L:690mm 5-8 690 mm
9000800 KM570 KELOX Universal Manifold Housing Frame Special Size L:1150mm Special Size 1150 mm
