9000530 - KMU577K KELOX-ULTRAX Universal Manifold Housing Set 1-3 Ports (L:400mm)

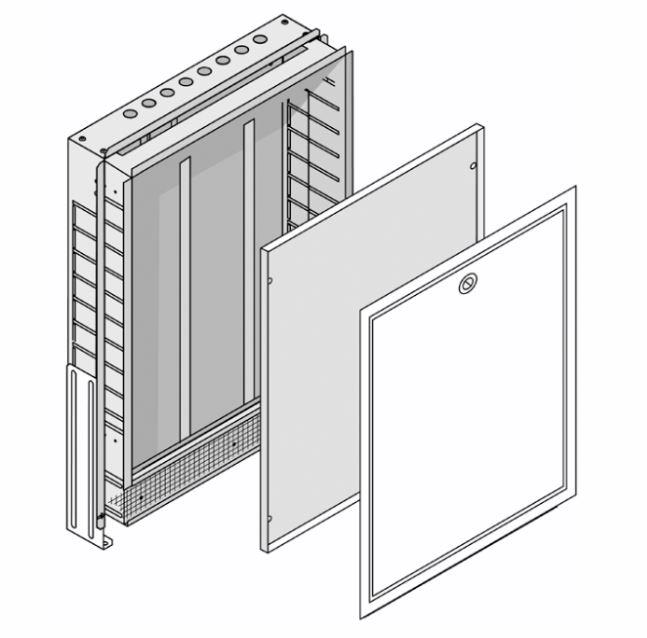

Galvanised universal sheet steel cabinet with telescopic pull-outframe, connection option from below or on the side, height-adjustable feet, plaster trim element below the cabinet, incl. on the back and the plaster trim element 60mm protruding plastering mesh and plastering protection for the inside of the cabinet.

Including 12 drill screws 4.2 x 16mm for attachment of the manifold.

With anti-static, paintable, UV-resistant ABS covering, attachable with ABS screws.

A number of manifold outputs in KMU590E KELOX-ULTRA X FBmanifold coordinated!

Colour: RAL 9010

Cabinet depth: 75–120mm, Installation height: 600mm above the finished floor

Telescopic frame, plaster covering, ABS covering, ABS screws and drill screw set available separately.

Marketing
KE KELIT - Piping Product Selector	30 Jul 2018
Technical
KE KELIT - Underfloor Heating Technical Handbook - Aug 2022	31 Aug 2018

		Manifold Data
Code	Description	Ports	Length
9000830	KMU577K KELOX-ULTRAX Universal Manifold Housing Set 10-12 Ports (L:1000mm)	10-12	1000 mm
9000530	KMU577K KELOX-ULTRAX Universal Manifold Housing Set 1-3 Ports (L:400mm)	1-3	400 mm
9000630	KMU577K KELOX-ULTRAX Universal Manifold Housing Set 4-6 Ports (L:600mm)	4-6	600 mm
9000730	KMU577K KELOX-ULTRAX Universal Manifold Housing Set 7-9 Ports (L:800mm)	7-9	800 mm
