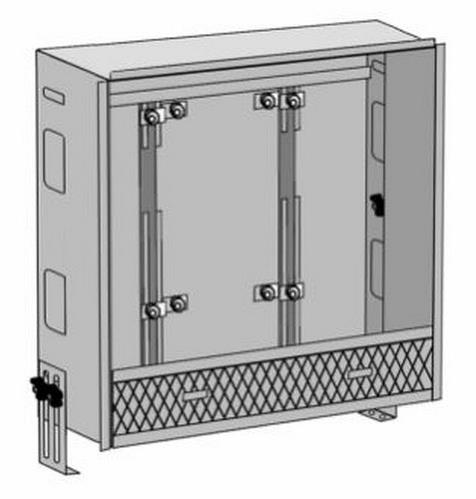

9000510 - KM570F KELOX Universal Manifold Housing Frame 1-4 Ports (L:460mm)

Underfloor Heating - Manifolds - Manifold Housing » KM570F KELOX Universal Manifold Housing Frame 110

Sendzimir zinc-coated universal sheet steel cabinet, connection option from below or on the side, height-adjustable feet, plaster trim element below the cabinet, (width 120mm), upgradable with a surface-mounted or flush-mounted visible part.

Suitable for the installation of KM650 KELOX FB fixed-value control set.

A number of manifold outputs on KM590E KELOX FB manifold coordinated!

Cabinet depth: 110mm, Installation height: 600mm above the finished floor.

Documents

Marketing
KE KELIT - Piping Product Selector	30 Jul 2018
Technical
KE KELIT - KM570F+571+572 - Technical Data Sheet	18 Oct 2022
KE KELIT - Underfloor Heating Technical Handbook - Aug 2022	31 Aug 2018

Product Data

		Manifold Data
Code	Description	Ports	Length
9000610	KM570F KELOX Universal Manifold Housing Frame 5-8 Ports (L:690mm)	5-8	690 mm
9000510	KM570F KELOX Universal Manifold Housing Frame 1-4 Ports (L:460mm)	1-4	460 mm
9000710	KM570F KELOX Universal Manifold Housing Frame 9-12 Ports (L:840mm)	9-12	840 mm
9000810	KM570F KELOX Universal Manifold Housing Frame Special Size L:1150mm	Special Size	1150 mm
9001930	KM577 KELOX Flush Mounted Manifold Housing Frame Special Size L:1200mm	1-4	460 mm
