7021602 - KM100 KELOX Multilayer Pipe - 16 x 2mm (200m) (Alt Code: 7521160)

Piping Systems - KELOX Multilayer - KELOX Multilayer » KM100 KELOX Multilayer Pipe - Coils

KELOX multilayer pipe conforming to EN ISO 21003. Pipe consists of oxygen and water vapour barriers made from a 5-layer multilayer tube of PE-RT/Al/PE-RT.

Operating Conditions Domestic Water:

Tmax - 70°C (Short term 80°C)
Pmax - 10 bar

Operating Conditions Radiator Systems:

Tmax - 80°C (Short term 90°C)
Pmax - 10 bar

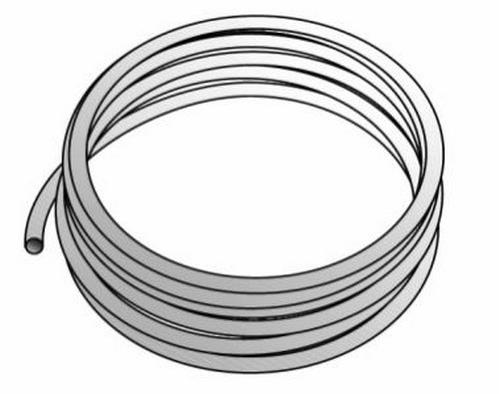

Supplied in coils, external layer white.

Documents

Certification
KE KELIT - KELOX Multilayer - CodeMark Certificate CM70042	25 Nov 2019
Marketing
KE KELIT - Piping Product Selector	30 Jul 2018
Technical
KE KELIT - KELOX Multilayer Handbook	29 Nov 2017

Product Data

		Measurements				Tolerances		Design
Code	Description	External Diameter	Wall Thickness	Internal Diameter	Length	Maximum Pressure	Maximum Temperature	External Colour
7023200	KM100 KELOX Multilayer Pipe - 32 x 3mm (50m)	32 mm	3 mm	26 mm	50 m	10 bar	80 °C	White
7021207	KM100 KELOX Multilayer Pipe - 12 x 1.5mm (700m)	12 mm	1.5 mm	10.5 mm	700 m	10 bar	80 °C	White
7021602	KM100 KELOX Multilayer Pipe - 16 x 2mm (200m) (Alt Code: 7521160)	16 mm	2 mm	14 mm	200 m	10 bar	80 °C	White
7022001	KM100 KELOX Multilayer Pipe - 20 x 2.25mm (100m)	20 mm	2.3 mm	15.5 mm	100 m	10 bar	80 °C	White
7022500	KM100 KELOX Multilayer Pipe - 25 x 2.5mm (50m)	25 mm	2.5 mm	20 mm	50 m	10 bar	80 °C	White
