Piping Systems - KELOX Multilayer - KELOX Multilayer » KM133 KELOX Pre-Insulated Pipe (13mm)

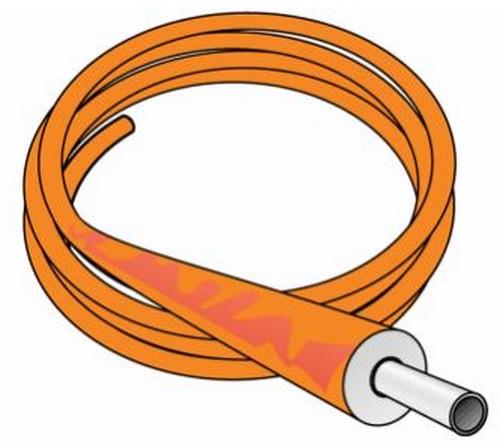

KELOX multilayer pipe conforming to EN ISO 21003 with oxygen and water vapour barrier. 5-layer multilayer pipe made of PE-RT/AI/PE-RT. 13mm soft foam insulation; closed cell: protective sleeve made of viscoplastic PE foil. Insulation thickness: 13mm. Colour: orange. Supplied in coils. Operating conditions: • Drinking water installations Class 2 according to ÖNORM EN ISO 21003. Operating temperature: 70°C – 10 bar / tmax 80°C. • Radiator connection: Class 5 according to ÖNORM EN ISO 21003. Operating temperature: tmax 80°C – 10 bar / tmax 90°C.
| Certification | |||
|---|---|---|---|
| KE KELIT - KELOX Multilayer - CodeMark Certificate CM70042 | 25 Nov 2019 | ||
| Marketing | |||
| KE KELIT - Piping Product Selector | 30 Jul 2018 | ||
| Technical | |||
| KE KELIT - KELOX Multilayer Handbook | 29 Nov 2017 | ||
| Tolerances | Design | |||
| Code | Description | Maximum Temperature | Maximum Pressure | External Colour |
| 70212513 | KM133 KELOX Plus Pipe - 25 x 2.5mm, 13mm Insulation (25m) (Alt Code: 75212513) | 90 °C | 16 bar | Orange |
| 70211613 | KM133 KELOX Plus Pipe - 16 x 2mm, 13mm Insulation (50m) | 90 °C | 16 bar | Orange |
| 70212013 | KM133 KELOX Plus Pipe - 20 x 2.25mm, 13mm Insulation (50m) | 90 °C | 16 bar | Orange |
| 70213213 | KM133 KELOX Plus Pipe - 32 x 3mm, 13mm Insulation (25m) (Alt Code: 75213213) | 90 °C | 16 bar | Orange |
| 70213213-50 | KM133 KELOX Plus Pipe - 32 x 3mm, 13mm Insulation (50m) | 90 °C | 16 bar | Orange |
