66813.64 - MEIBES PG V-Direct, 1" MAGNA 25-60 (L:555mm, W:355mm, H:240mm)

Suitable for unmixed heating circuit for manifolds up to 100 KW and for large manifolds.

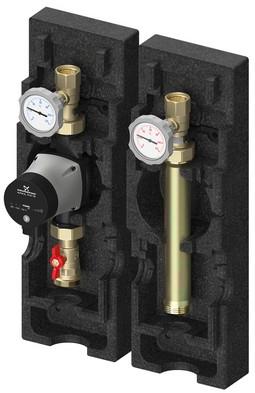

Complete with or without recirculation pump (installed length 180 mm) with connection cable; two ball valves (on return side with manually adjustable gravity brake); two contact thermometers integrated into ball valve handle (indicated range 0 – 120°C); a pump ball valve with Meibes flange; EEP insulation; axial distance freely selectable from 175 mm; lower outlet piece 1 1 / 2" male thread, flat sealing, upper outlet piece female thread according to pump dimension.

Upper connection G 1" or G 1 1/4" female thread, Lower connection G 1 1 / 2" male thread (flat sealing),

Axial distance From 175 mm, Components made of Steel, brass, EPP insulation,

Dimensions per line approx. H 550 × W 175 x D 240 mm

Sealing materials PTFE, EPDM

Temperature indicator 0 to 120°C, Operating temperature Up to 110°C, Operating pressure PN10. Kvs value 6.4 m ³/ h - 14.1 m ³/ h.

Marketing
Packaging Data - Flamco, Simplex Meibes	14 Apr 2023
Technical
Meibes - Large Manifold Systems - Technical Data	22 Nov 2018
Meibes - Large Scale Pump Group - Technical Data	01 Mar 2018
Meibes - V-Direct Pump Group - Data Sheet	01 Aug 2019

		Measurements	Tolerances		Pump Group Data
Code	Description	Length	Maximum Temperature	Operating Pressure	Min. Output (kW)	Max. Output (kW)	Flow Rate	Flow Coefficient Value	Axial Distance	Boiler Connection	Heating Circuit Connection
66813.64	MEIBES PG V-Direct, 1" MAGNA 25-60 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	84 kW	126 kW	3.6 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813_EA	MEIBES PG V-Direct, 1" Without Pump (L:560mm, W:360mm, H:270mm)	180 mm	110 °C	PN 10	0 kW	0 kW	0 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813_ZEA	MEIBES PG V-Direct, 1" Without Pump, Section For Counter Unit (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	0 kW	0 kW	0 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813.10_WI	MEIBES PG V-Direct, 1" Wilo Yonos PICO 25/1-6 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	49 kW	73 kW	2.1 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813.10_ZWI	MEIBES PG V-Direct, 1" Wilo Yonos PICO OEM 25/6, Section For Counter Unit (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	49 kW	73 kW	2.1 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813.30	MEIBES PG V-Direct, 1" Grundfos Alpha 2.1 25-60 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	51 kW	77 kW	2.2 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813.30_Z	MEIBES PG Direct, Ed. 8, 1" Grundfos Alpha 2.1 25-60, Section For Counter Unit (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	51 kW	77 kW	2.2 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813.31_WI	MEIBES PG V-Direct, 1" Wilo Stratos PARA 25/1-7 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	74 kW	112 kW	3.2 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813.31_ZWI	MEIBES PG V-Direct, 1" Wilo Stratos PARA 25/1-7, Section For Counter Unit (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	74 kW	112 kW	3.2 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813.36	MEIBES PG V-Direct, 1" Grundfos UPM3 Hybrid 25-70 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	60 kW	91 kW	2.6 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813.36_Z	MEIBES PG V-Direct, 1" Grundfos UPM3 Hybrid 25-70 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	60 kW	91 kW	2.6 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66813.64_Z	MEIBES PG V-Direct, 1" MAGNA 3 25-60, Section For Counter Unit (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	84 kW	126 kW	3.6 m3/h	7.2	200 mm	1 1/2" AD	1" IG
66814_EA	MEIBES PG V-Direct, 1.1/4" Without Pump (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	0 kW	0 kW	0 m3/h	7.6	200 mm	1 1/2" AD	1 1/4" IG
66814.05_EA	MEIBES PG V-Direct, 1.1/4" Without Pump (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	0 kW	0 kW	0 m3/h	11.7	200 mm	1 1/2" AD	1 1/4"
66814.10_WI	MEIBES PG V-Direct, 1.1/4" Wilo Yonos PICO 30/1-6 (L:425mm, W:255mm, H:255mm)	180 mm	110 °C	PN 10	51 kW	77 kW	2.2 m3/h	7.6	200 mm	1 1/2" AD	1 1/4" IG
66814.15_WI	MEIBES PG V-Direct, 1.1/4" Wilo Yonos PICO OEM 30/1-6/180 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	56 kW	84 kW	2.4 m3/h	11.7	200 mm	1 1/2" AD	1 1/4" IG
66814.30	MEIBES PG V-Direct, 1.1/4" Grundfos Alpha 2.1 32-60 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	53 kW	80 kW	2.3 m3/h	7.6	200 mm	1 1/2" AD	1 1/4" IG
66814.31_WI	MEIBES PG V-Direct, 1.1/4" Wilo Stratos PARA 30/1-7 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	77 kW	115 kW	3.3 m3/h	7.6	200 mm	1 1/2" AD	1 1/4" IG
66814.35	MEIBES PG V-Direct, 1.1/4" Grundfos Alpha 2.1 32-60 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	58 kW	87 kW	2.5 m3/h	11.7	200 mm	1 1/2" AD	1 1/4" IG
66814.35_WI	MEIBES PG V-Direct, 1.1/4" Wilo Stratos PARA 30/1-7/180 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	86 kW	129 kW	3.7 m3/h	11.7	200 mm	1 1/2" AD	1 1/4" IG
66814.36	MEIBES PG V-Direct, 1.1/4" Grundfos UPM3 Hybrid 32-70 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	63 kW	94 kW	2.7 m3/h	7.6	200 mm	1 1/2" AD	1 1/4" IG
66814.55	MEIBES PG V-Direct, 1.1/4" Grundfos UPM3 Hybrid 32-70 (L:555mm, W:355mm, H:240mm)	180 mm	110 °C	PN 10	67 kW	101 kW	2.9 m3/h	11.7	200 mm	1 1/2" AD	1 1/4" IG
66814.64	MEIBES PG V-Direct, 1.1/4" MAGNA 32-60	180 mm	110 °C	PN 10	86 kW	129 kW	3.7 m3/h	7.6	200 mm	1 1/2" AD	1 1/4" IG
66814.65	MEIBES PG V-Direct, 1.1/4" MAGNA 32-60 Large Flow Rates	180 mm	110 °C	PN 10	107 kW	160 kW	4.6 m3/h	11.7	200 mm	1 1/2" AD	1 1/4" IG
