66392.31 - MEIBES PG Boiler Guard K 5/4" Up to 70kW Without Hydraulic Diverter (Black), Magnetite Separator

Pump Groups - Residential - Boiler Guard » MEIBES PG - Boiler Guard K

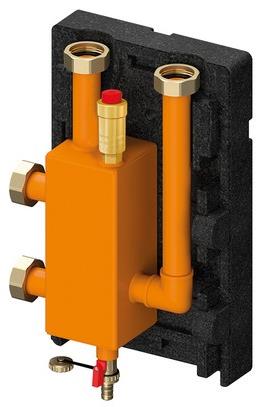

Boiler guard either with hydraulic diverter (orange) or without hydraulic diverter (black), air separator, dirt trap, and 1 magnetite separator. Includes immersion sleeve for supply sensor with diameters up to 10 mm and insulation.

  • Maximum temperature: 110°C
  • Maximum pressure: 6 bar
  • Can be used for heating systems up to 70 kW
  • Horizontal and vertical axial distance 125 mm
  • With 3 functions: Air/gas separator, dirt/sludge separator, and magnetite separator
  • See technical manual for pressure drop chart

Documents

Marketing
Packaging Data - Flamco, Simplex Meibes 14 Apr 2023
Technical
Meibes - Boiler Guard - Technical Data 01 Mar 2018
Meibes - Pump Group Boiler Guard K - Data Sheet 01 Aug 2019
Login or register to create projects and view pricing.

Product Data


Measurements Design Pump Group Data
Code Description Threaded Connection Hydraulic Diverter External Colour Max. Output (kW)
66392.31 MEIBES PG Boiler Guard K 5/4" Up to 70kW Without Hydraulic Diverter (Black), Magnetite Separator 2" (DN 32) Without Black 70 kW
66393.21 MEIBES PG Boiler Guard K 1" Up To 50kW With Hydraulic Diverter (Orange), Magnetite Separator 1 1/2" (DN 25) With Orange 50 kW
66393.31 MEIBES PG Boiler Guard K 5/4" Up To 70kW With Hydraulic Diverter (Orange), Magnetite Separator 2" (DN 32) With Orange 70 kW
66392.21 MEIBES PG Boiler Guard K 1" Up to 50kW Without Hydraulic Diverter (Black), Magnetite Separator 1 1/2" (DN25) Without Black 50 kW
