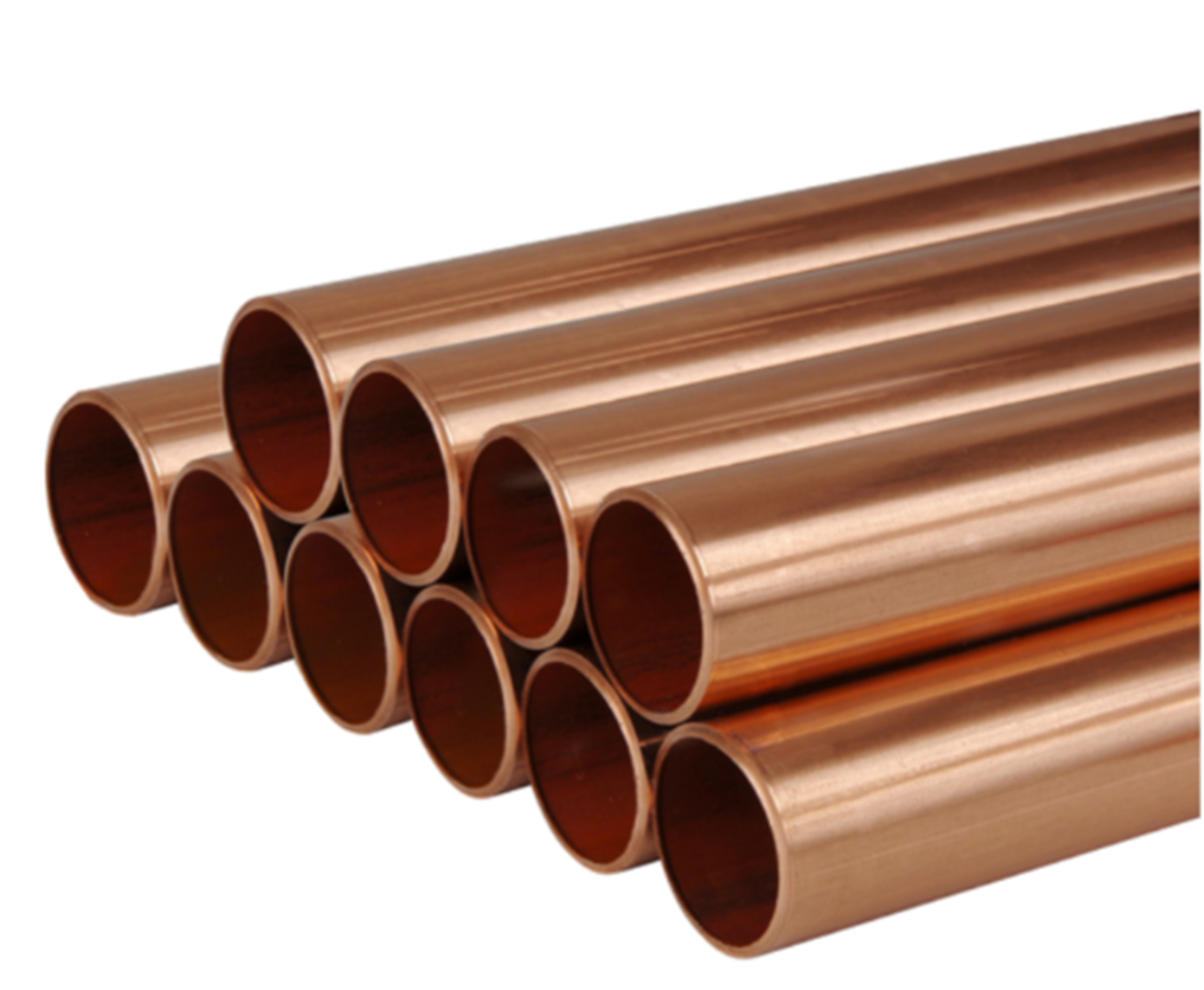

5630XK00 - COPPERFIX Copper Tube (Hard) 88.9 x 1.5 mm (5.8m)

The COPPERFIX system by KE KELIT is suitable for use in potable hot and cold water applications, compressed air and closed-circuit applications like heating and cooling systems. Fittings have a "leak before pressed" function making it possible to detect fittings which have not been pressed during pressure testing.

The designer must correctly use the COPPERFIX copper pipe for its intended purpose. Please consult the specification table and the COPPERFIX Technical Manual for further details. The COPPERFIX system has a non-corrosive surface, therefore it is excellent choice for drinking water piping.

For high temperature and compressed air systems with a high oil content, FKM (Viton) O-rings must be used.

Documents

CAD
COPPERFIX Revit Family	17 Nov 2022
Certification
KE KELIT - COPPERFIX - CodeMark Certificate CM70041	25 Nov 2019
Marketing
KE KELIT - Piping Product Selector	30 Jul 2018
Technical
KE KELIT - COPPERFIX - Handbook	12 Dec 2017
KE KELIT - Pressure Loss Tables	06 Aug 2019

		Measurements			Tolerances			Design		Packaging
Code	Description	External Diameter	Length	Internal Diameter	Maximum Temperature	Minimum Temperature	Maximum Pressure	Hardness	Manufactured Standard	Bundle Size
5630XK00	COPPERFIX Copper Tube (Hard) 88.9 x 1.5 mm (5.8m)		5.8 m		110 °C	-20 °C	16 bar		EN 1057	1 L
5620XB00	COPPERFIX Copper Tube (1/2 Hard) 15 x 0.7 mm (5.8m)	15 mm	5.8 m	13.6 mm	110 °C	-20 °C	16 bar	R250	EN 1057	10 L
5620XC00	COPPERFIX Copper Tube (1/2 Hard) 18 x 0.8 mm (5.8m)	18 mm	5.8 m	16.4 mm	110 °C	-20 °C	16 bar	R250	EN 1057	10 L
5620XD00	COPPERFIX Copper Tube (1/2 Hard) 22 x 0.9 mm (5.8m)	22 mm	5.8 m	20.2 mm	110 °C	-20 °C	16 bar	R250	EN 1057	10 L
5620XE00	COPPERFIX Copper Tube (1/2 Hard) 28 x 0.9 mm (5.8m)	28 mm	5.8 m	26.2 mm	110 °C	-20 °C	16 bar	R250	EN 1057	5 L
5630XF00	COPPERFIX Copper Tube (Hard) 35 x 1.2 mm (5.8m)	35 mm	5.8 m	32.6 mm	110 °C	-20 °C	16 bar	R290	EN 1057	5 L
5630XG00	COPPERFIX Copper Tube (Hard) 42 x 1.2 mm (5.8m)	42 mm	5.8 m	39.6 mm	110 °C	-20 °C	16 bar	R290	EN 1057	5 L
5630XJ00	COPPERFIX Copper Tube (Hard) 76.1 x 1.5 mm (5.8m)	76.1 mm	5.8 m	73.1 mm	110 °C	-20 °C	16 bar	R290	EN 1057	1 L
5630YK00	COPPERFIX Copper Tube (Hard) 88.9 x 2.0 mm (5.8m)	88.9 mm	5.8 m	84.9 mm	110 °C	-20 °C	16 bar	R290	EN 1057	1 L
5630XL00	COPPERFIX Copper Tube (Hard) 108 x 1.5 mm (5.8m)	108 mm	5.8 m	105 mm	110 °C	-20 °C	16 bar	R290	EN 1057	1 L
5630XH00	COPPERFIX Copper Tube (Hard) 54 x 1.2 mm (5.8m)	54 mm	5.8 m	51.6 mm	110 °C	-20 °C	16 bar	R290	EN 1057	5 L
5630XI00	COPPERFIX Copper Tube (Hard) 66.7 x 1.2 mm (5.8m)	66.7 mm	5.8 m	64.3 mm	110 °C	-20 °C	16 bar	R290	EN 1057	5 L
5630XN00	COPPERFIX Copper Tube (Hard) 159 x 2 mm (5.8m)		5.8 m		110 °C	-20 °C	16 bar		EN 1057	1 L
5630XM00	COPPERFIX Copper Tube (Hard) 133 x 1.5 mm (5.8m)		5.8 m		110 °C	-20 °C	16 bar		EN 1057	1 L
