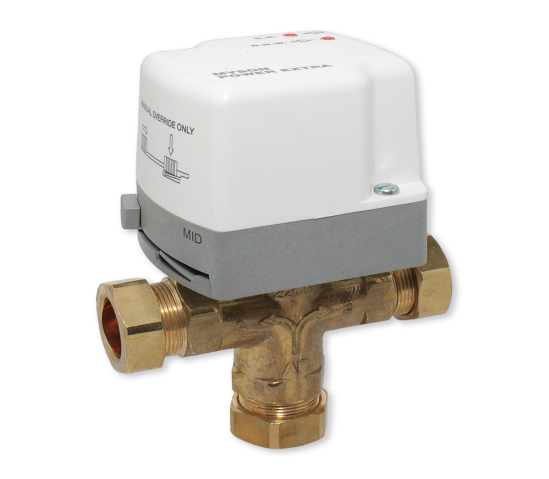

MPE322DV - MYSON Three Port Diverter Valve 22mm

Valves - Zone Valves - Zone Valve » MYSON - Three Port Motorized Zone Valve

The Myson Powerextra motorised valve has been designed with complete reliability and compatibility in mind.

The range has low contact resistance switching for compatibility with the low voltage/low current switching found on many boilers.

The three port MPEs incorporate a market leading 6Watt Class F motor, with high start-up torque to ensure start-up after prolonged shutdown.

Maximum Operating pressure 10 Bar, Maximum water temperature 95°C, Minimum water temperature 5°C, Maximum ambient temperature 52°C, Electrical 5W/6W double insulated 230V/50Hz.

Documents

Technical
MYSON Three Port Diverter Valve 22mm - Data Sheet 13 Feb 2025
