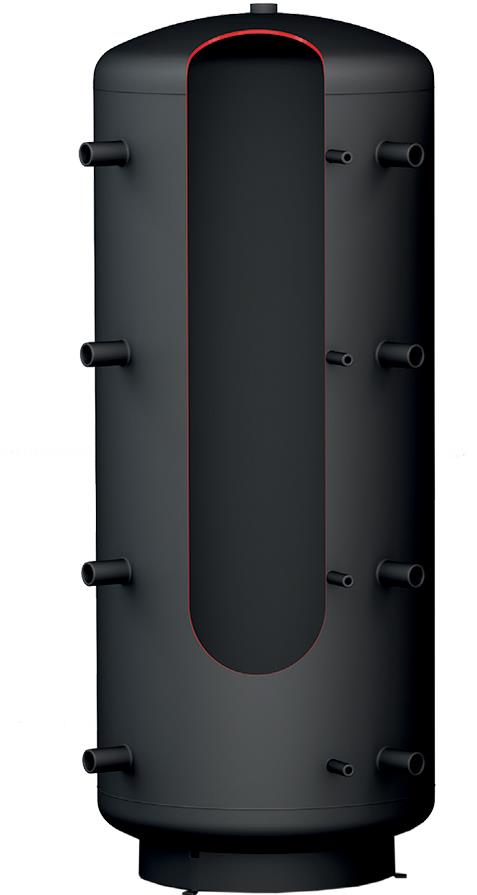

A34111 - AE PSM 200L Steel Buffer Tank (with 1 1/2" connections)

Water Heaters & Storage Vessels - Buffer Tanks - Buffer Tanks (Insulation Jackets sold separately) » Water Buffer Tanks 300 - 3000L

"Buffer tank for use in pressurised systems – max pressure 4 bar.Insulation purchased separately: Code A80107Maximum operating temperature: 95 °C.8x 1 ½ ” internal thread connections at 100°.1x 1½” top connection for take off or AAV.4x ½” ports for temperature sensor pockets (order separately code 18955).Height: 1330mm. Diameter: 700mm. (With insulation).Empty weight: 78kg.Temperature pockets, isolating valves and AAV ordered separately."


Documents

Installation
AE Tanks - Water Buffer Tank General Installation and Warranty Terms 28 May 2024
Technical
AE Tanks - PSM Buffer Tank Technical Data 28 May 2024
