38372 - FLAMCO Fixing BSH clip M8-M10 x 75-80
Fixing Technology - Clips - Universal Mounting Clips »

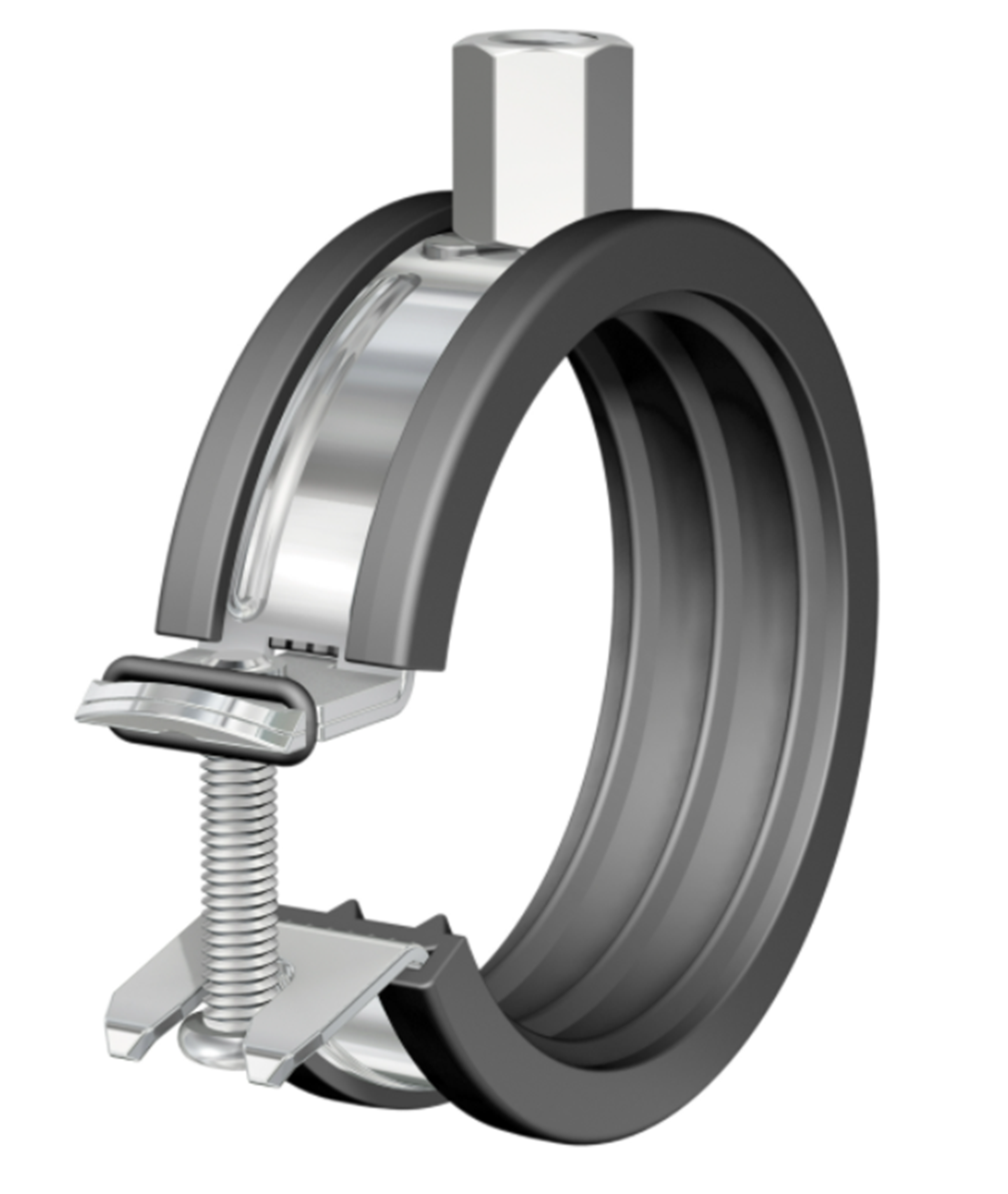

FLAMCO - BSH Universal Rubber Lined Clip M8-M10
BSH clips are rubber lined universal clips for mounting pipes to the wall or ceiling.
- Clip with handy, quick closing mechanism.
- Close fitting possible.
- Bolt with slot and cross head.
- Suitable for high loads and temperatures.
- Noise suppressing rubber lining: 15 dB(A) according to ISO 3822-1.
- To achieve maximum sound suppression do not overload the fitting.
- Safety margin for minimal breaking load (V) = 3.
- Clip: electrolytically zinc plated.
- BSH clips are compatible with pipe sizes as per DIN 2448 and DIN EN 1057.
- With halogen-free inlay.
- Equipped with Philips / slotted head screws.
