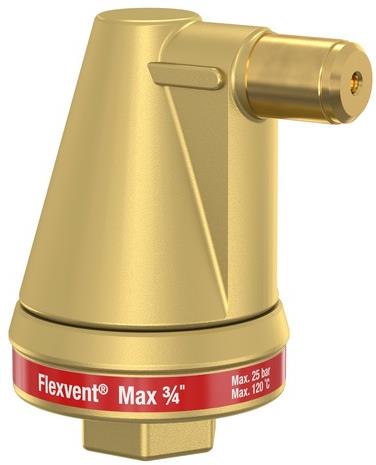

28550 - FLAMCO Flexvent Max Air Vent Rp 3/4 F

Air/Dirt Separators & Dosing - Air Vents - Automatic Air Vent » FLAMCO - Flexvent Max

The compact, proven design has high efficiency and guaranteed operation for heating and air conditioning.

The water within the installation contains air which can form corrosion and reduce the thermal transfer.

A Flexvent is fitted at places where the air collects.

Float operated, the air is collected in the Flexvent causing the float to drop and open the air release valve.

When the air is eliminated the float rises and closes the valve.
  • Minimum/Maximum operating temperature: - 10 °C / 120 °C.
  • Minimum/Maximum operating pressure: 0.2 / 25.0 bar.
  • Suitable for water and water/glycol solutions up to 50% glycol.

Documents

Installation
Flamco - Flexvent Max/Flexvent Super - Installation Instructions 06 Sep 2018
Marketing
Flamco - Product Overview 29 Aug 2018
KE KELIT Climate Control - Heating Systems Product Catalogue 26 Jun 2019
Packaging Data - Flamco, Simplex Meibes 14 Apr 2023
Technical
Flamco - Flexvent Max - Data Sheet 06 Sep 2018
Flamco - Venting Range & Air/Dirt Separators - Catalogue 04 Sep 2018
